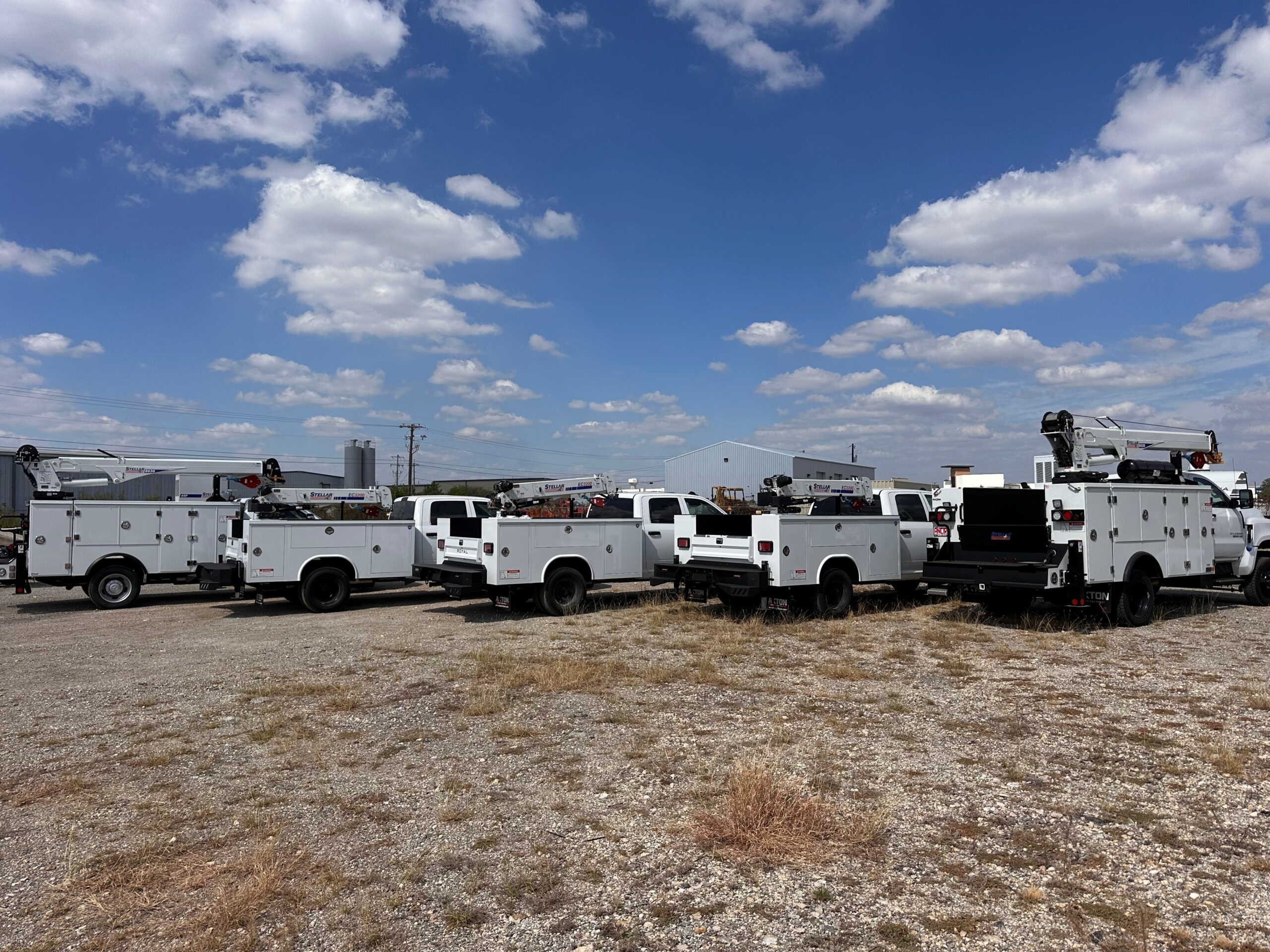

Crane bodies are engineered to deal with the torque applied by the crane, and serve to organize your tools and equipment. To complement the bodies we offer, we have a complete line of manual, electric, and hydraulic cranes to help position heavy parts in place for installation and to help load parts on the truck. These crane bodies are heavy machinery workshops on wheels!
Interested in more information on Crane Bodies? Complete the Request a Quote form and an Axton representative will be in touch shortly.
CM Truck Beds’ SB model is America’s ultimate utility hauling Service Body. Often copied, the SB is unparalleled in quality, with long-lasting hardware and remarkable durability. Axton uses this service body as the base for small crane packages up to 4,000 lbs.
| Lengths | 98”, 110”, 134” |
| Headache Rack | Optional |
| Deck | 12 Gauge Galvanneal Steel with Spray on Bed Liner |
| Frame Rails | 2” x 6” A500 Structural Tubing (110”); 3” x 6” A500 Structural Tubing (134”) |
| Crossmembers | 2” x 6” A500 Structural Tubing (110”); 3” x 6” A500 Structural Tubing (134”) |
| Bumper | Optional Workbench Bumper with Built-In Outriggers |
| BP Hitch | Optional Bolt-On (Cab Chassis) |
| Fuel Fill | Angled Cast |
| Masterlocks | Ergonomic Pistol Grip |
| Rear Lighting | LED Combination Flush Mount Light |
| Marker Lighting | Bullet DOT Approved LED |
| Toolbox | (6/8) Standard Integrated Toolboxes |
| Toolbox Handle | Chrome T-Handle Compression |
| Fenders | Polished Aluminum Trim |
| Tiedowns | (4) Tie-Down Loops (110”); (6) 6,000 lb. Crane 360 Degreee Swivel Tie-Down Loops (134”) |

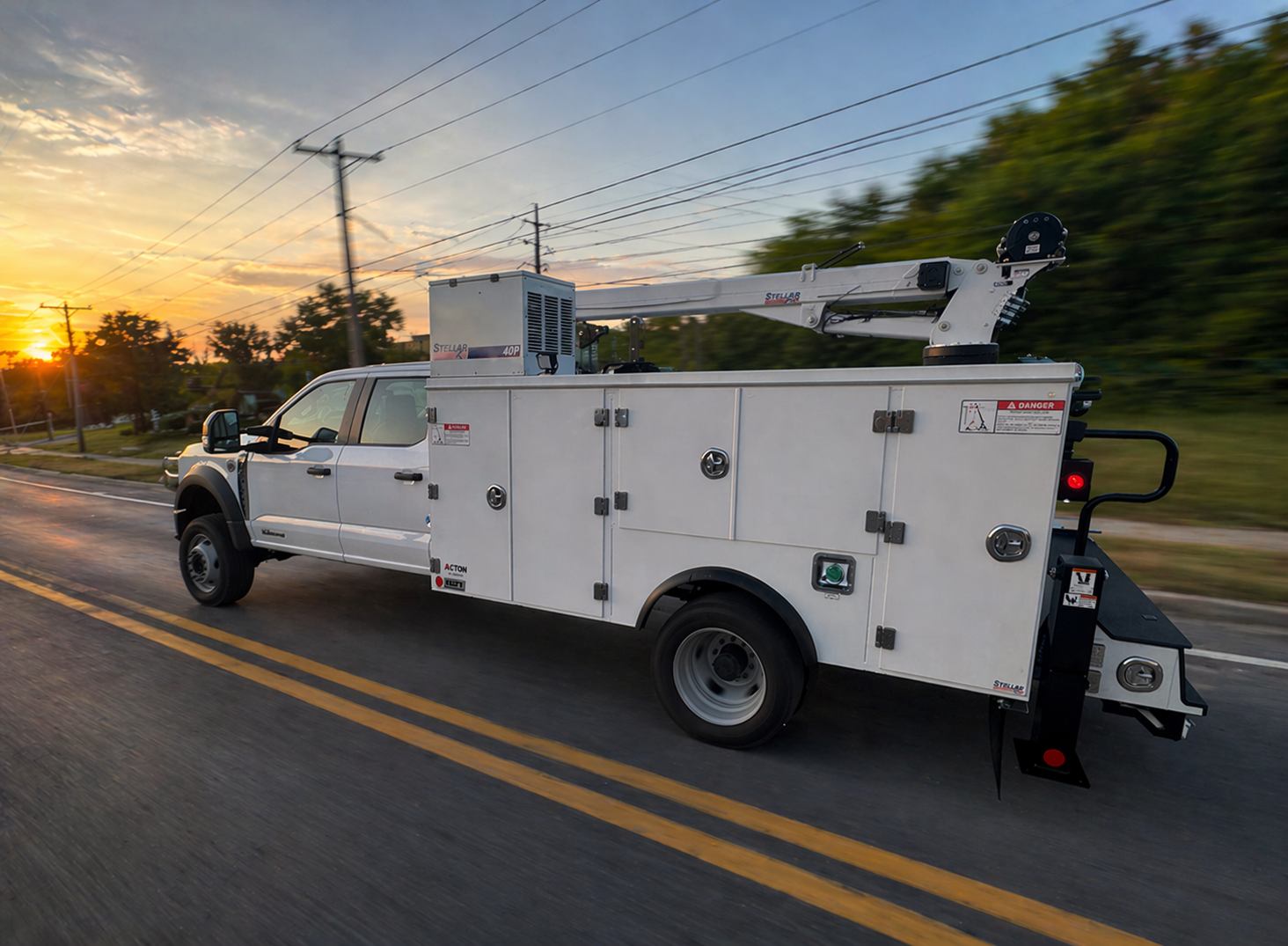

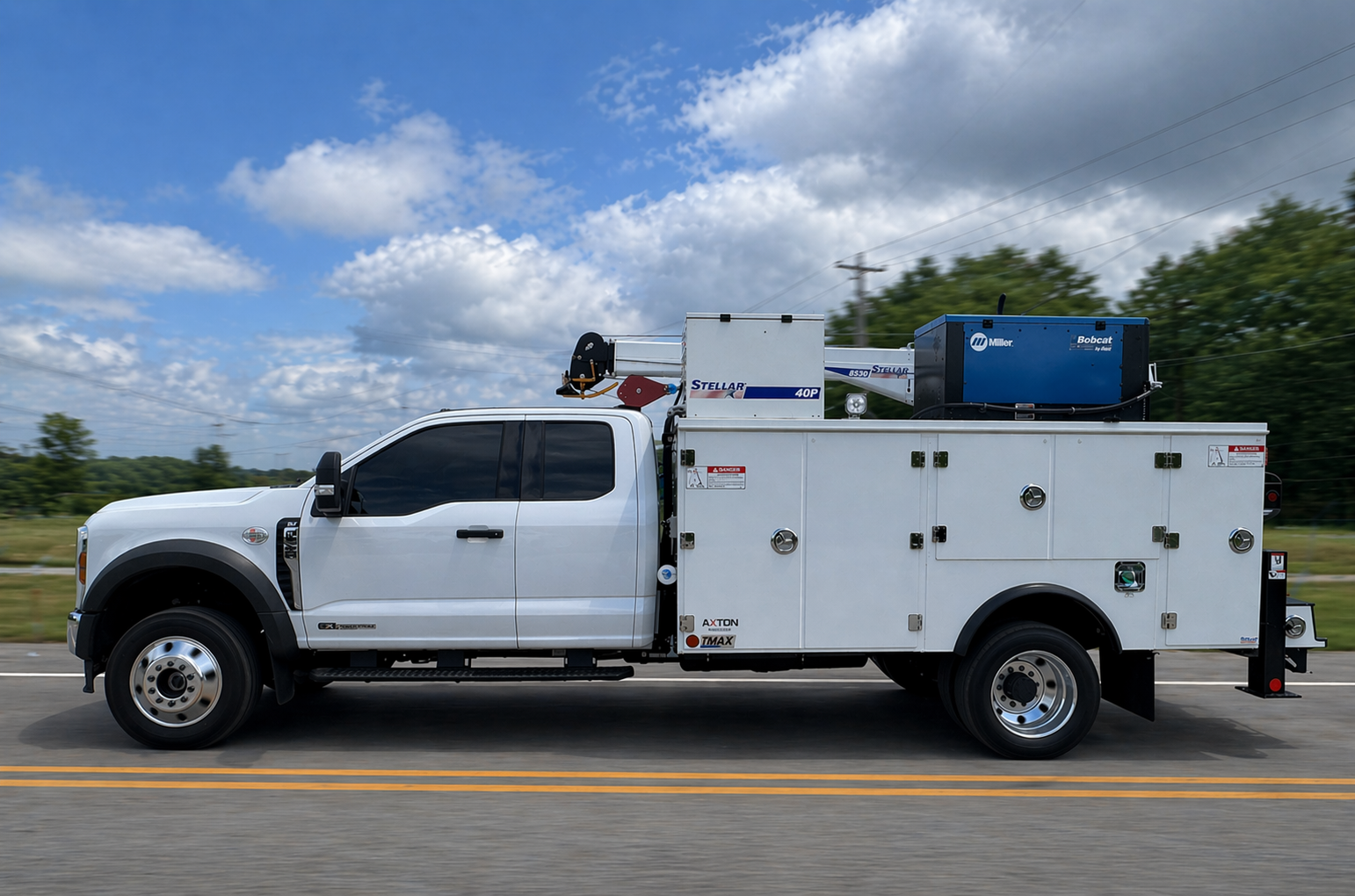

The Reading Master Mechanic Series Crane Bodies come in a variety of sizes and configurations to meet your particular project requirements. Built to withstand your industry’s toughest environment, models range from 9 feet to 14 feet in body length, 60 inches to 120 inches in cab-to-axle chassis and up to 12,000-pound weight capacity.
| TMAX 16K | Crane Max Capacity: 4,000lbs |
| TMAX 30K | Crane Max Capacity: 4,000lbs |
| TMAX 1 | Crane Max Capacity: 8,600lbs |
| TMAX 2 | Crane Max Capacity: 12,000lbs |
| TMAX 3 | Crane Max Capacity: 14,000lbs |
Truck upfitting is the process of installing equipment and customizing a chassis or van to create a work-ready vehicle tailored to your specific application.
