Interested in more information on Gooseneck Flatbeds? Complete the Request a Quote form and an Axton representative will be in touch shortly.

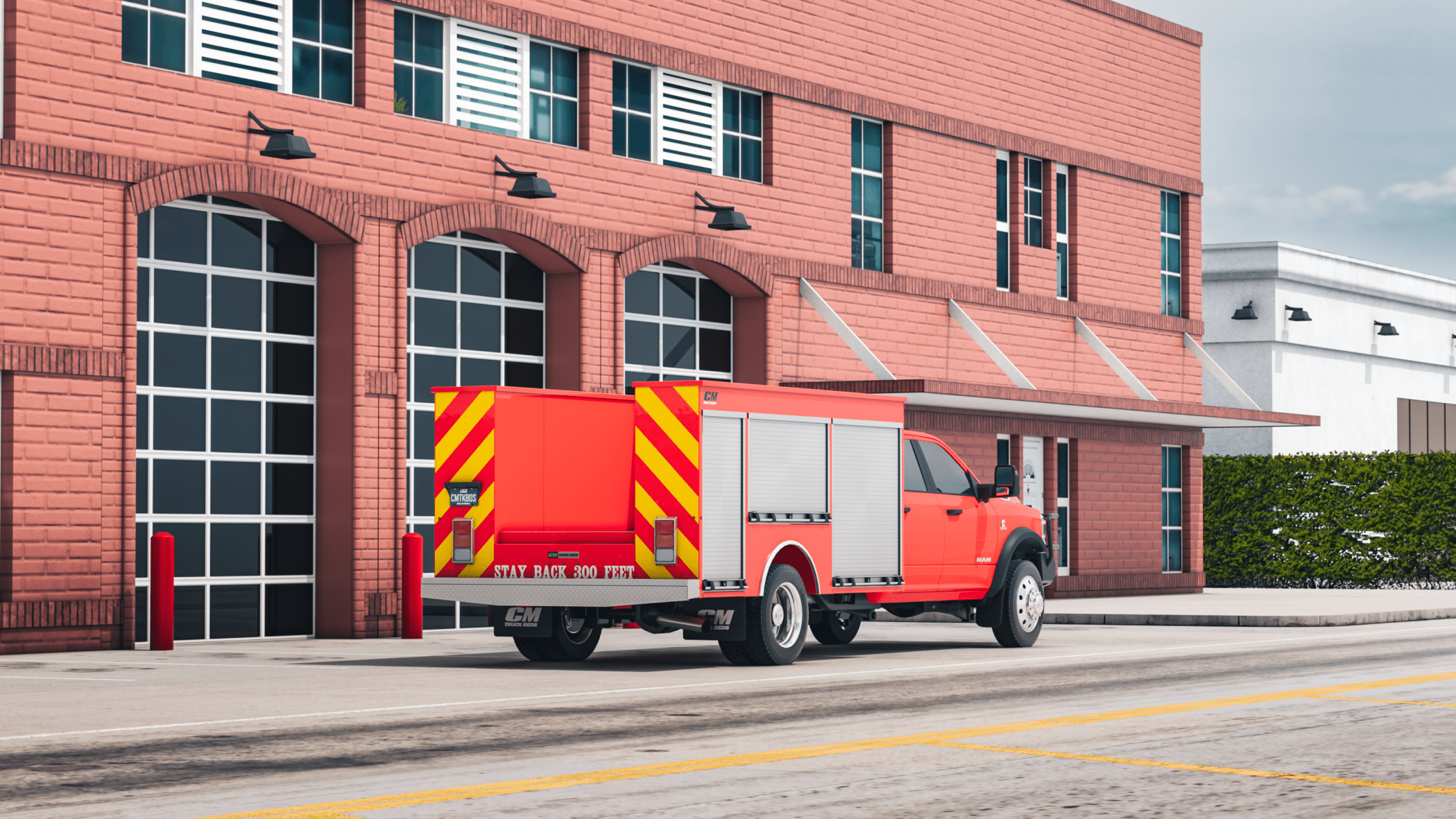

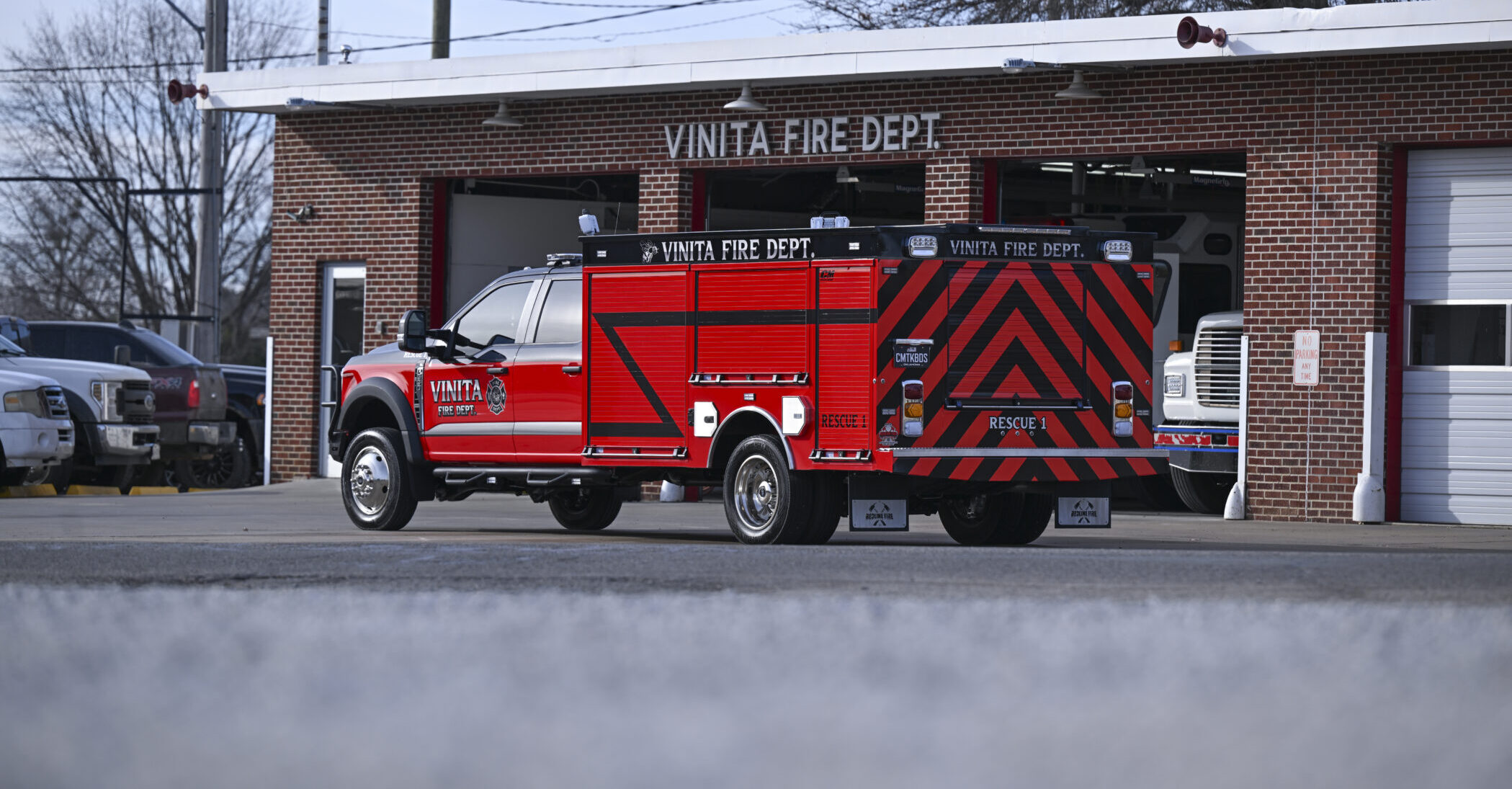

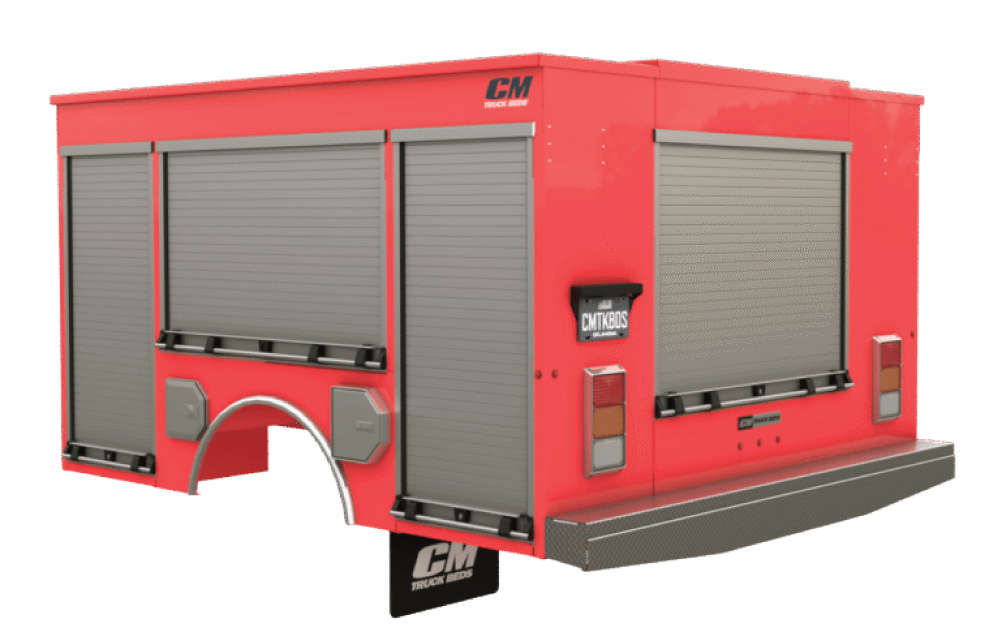

Built for speed, safety, and efficiency, it gives crews immediate access to essential tools with features like door-ajar lighting, optional HD slide out cargo drawers, and SCBA bottle holders.
| Lengths | 9"4", 11'4" |
| Deck | 11-Gauge Galvanneal Steel |
| Frame Rails | 6” Structural Channel Steel HRPO |
| CROSSMEMBERS | 4” Structural Channel Steel HRPO |
| FUEL FILL | Cast Aluminum (Polished) |
| REAR LIGHTING | Rear Vertical DOT Approved LED Lighting w/Cast Aluminum (Polished) Trim |
| MARKER LIGHTING | Bullet DOT Approved LED |
| FRONT COMPARTMENT | Passthrough Storage w/Optional HD Cargo Drawer System |
| CENTER COMPARTMENT | (Optional) Passthrough or Enclosed Compartment Storage |
| REAR COMPARTMENT | Uni-Strut Compartment Organizer with Standard Shelving |
| PAINT | White/Black/Red Wet Paint Option with Primer |
| COMPARTMENT LIGHTING | 16” - 35” Vertical LED Strip Lighting |
| DOOR AJAR SWITCH | Door Ajar Switch Triggered Compartment Lighting |
| TOOLBOX DOORS | Aluminum Hansen Roll-Up Doors |
| TOOLBOX HANDLE | Easy Access Spring Loaded Grip Handle |
| TOOLBOX DRIP PAN | Integrated Roll-Up Door Aluminum Drip Pan |
| FENDERS | Cast Aluminum (Polished) Trim |
| SCBA BOTTLE HOLDER | SS Oxygen Tank Holder w/Cast Aluminum (Polished) Trim |
| SIDE PACK TOPS | 11-Gauge Galvanneal Steel |
| FRONT BODY GUARDS | Aluminum Tread Plate |
| REAR BUMPER | Aluminum Grip Strut Bumper w/Tapered Departure Angle |
| UNDERBODY LINING | Bullet Liner Protective Coating |
| LICENSE PLATE HOLDER | SS Rear Mounted (Polished) Aluminum |

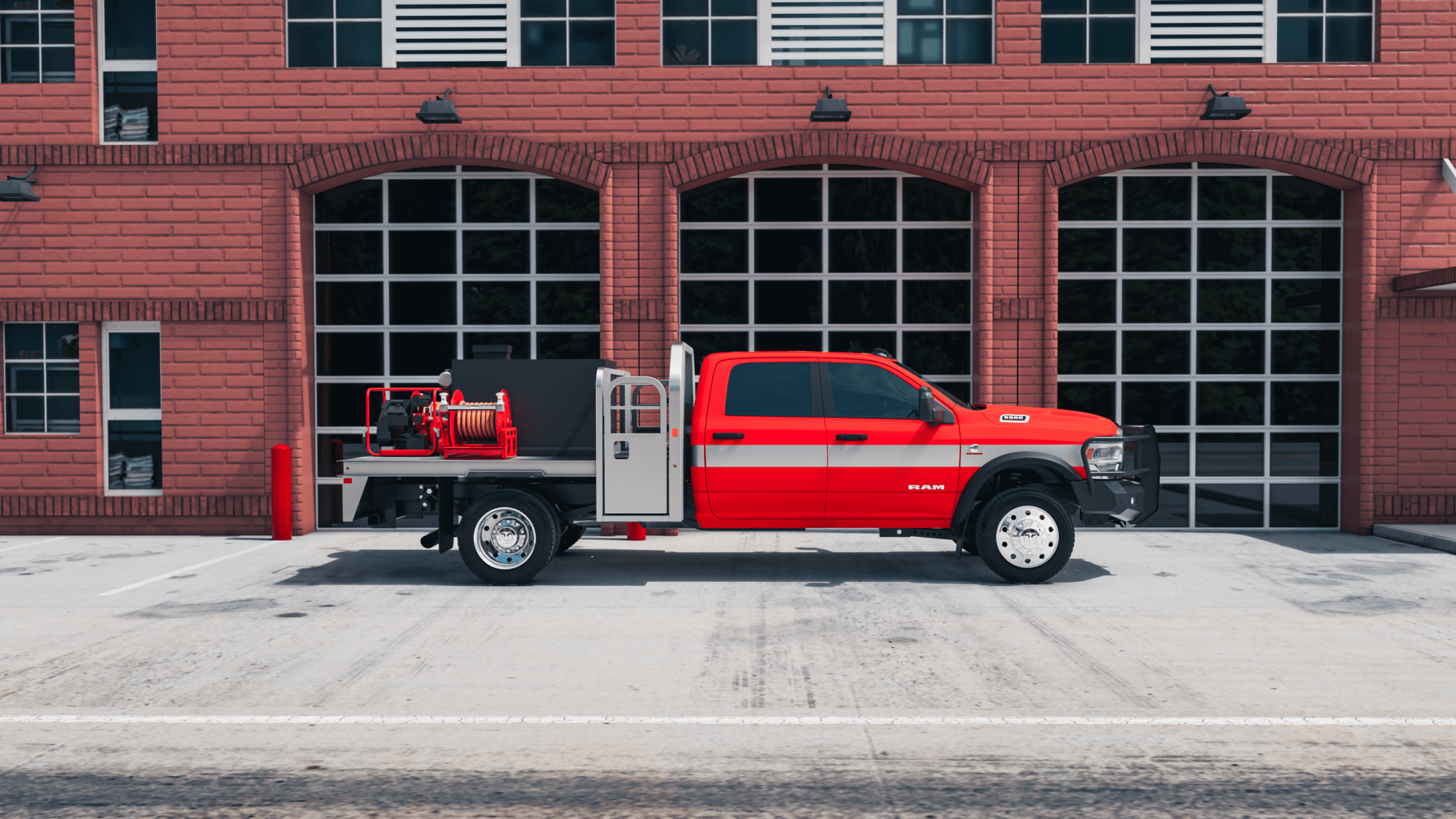

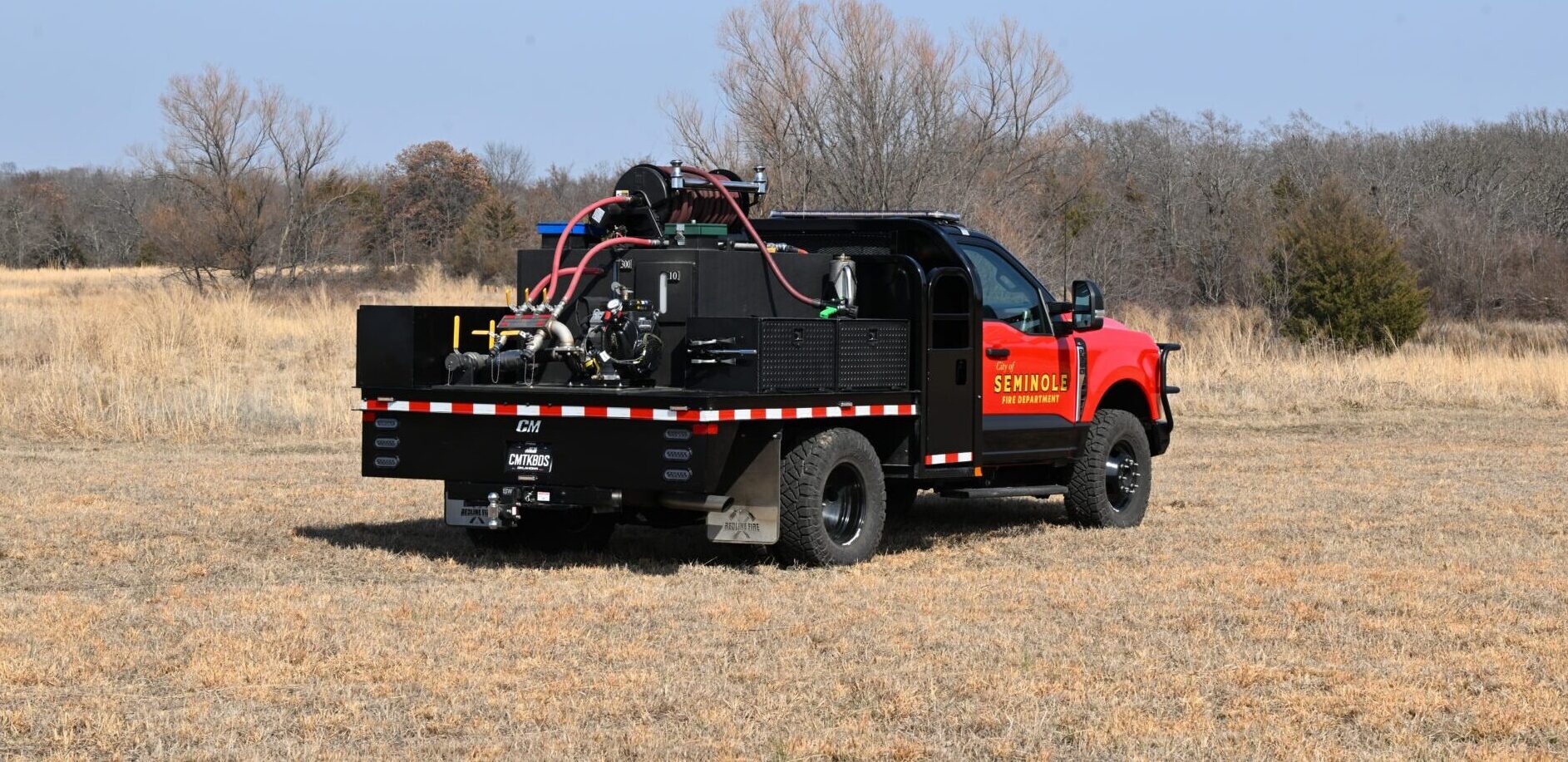

Open body design to house water tanks or other needed cargo. It gives crews immediate access to essential tools with features like door-ajar lighting, optional HD slide-out cargo drawers, and SCBA bottle holders.
| LENGTHS | 9”4”, 11’4” |
| DECK | 11-Gauge Galvanneal Steel |
| FRAME RAILS | 6” Structural Channel Steel HRPO |
| CROSSMEMBERS | 4” Structural Channel Steel HRPO |
| FUEL FILL | Cast Aluminum (Polished) |
| REAR LIGHTING | Rear Vertical DOT Approved LED Lighting w/Cast Aluminum (Polished) Trim |
| MARKER LIGHTING | Bullet DOT Approved LED |
| FRONT COMPARTMENT | Passthrough Storage w/Optional HD Cargo Drawer System |
| CENTER COMPARTMENT | N/A |
| REAR COMPARTMENT | Uni-Strut Compartment Organizer with Standard Shelving |
| PAINT | White/Black/Red Wet Paint Option with Primer |
| COMPARTMENT LIGHTING | 16” - 35” Vertical LED Strip Lighting |
| DOOR AJAR SWITCH | Door Ajar Switch Triggered Compartment Lighting |
| TOOLBOX DOORS | Aluminum Hansen Roll-Up Doors |
| TOOLBOX HANDLE | Easy Access Spring Loaded Grip Handle |
| TOOLBOX DRIP PAN | Integrated Roll-Up Door Aluminum Drip Pan |
| FENDERS | Cast Aluminum (Polished) Trim |
| SCBA BOTTLE HOLDER | SS Oxygen Tank Holder w/Cast Aluminum (Polished) Trim |
| SIDE PACK TOPS | 11-Gauge Galvanneal Steel |
| FRONT BODY GUARDS | Aluminum Tread Plate |
| REAR BUMPER | Aluminum Grip Strut Bumper w/Tapered Departure Angle |
| UNDERBODY LINING | Bullet Liner Protective Coating |
| LICENSE PLATE HOLDER | SS Rear Mounted (Polished) Aluminum |

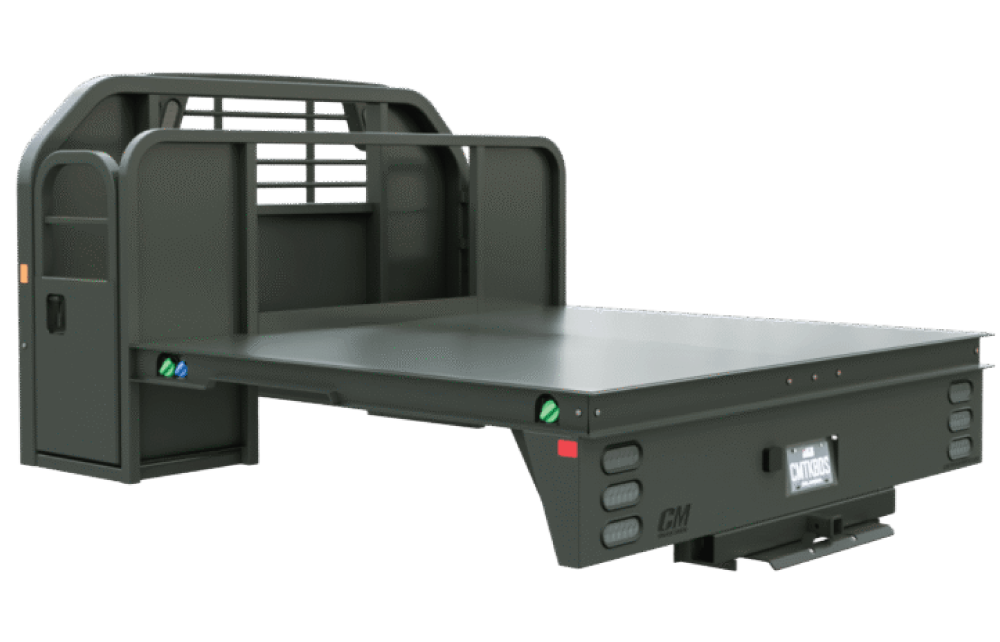

Features a premium EpoxiShield powder coat, one-piece steel tube headache rack, lifetime warranty LED smoke lights, and a rugged 11-gauge steel tread plate deck. Optional manwell on curbside and streetside enhances accessibility and functionality.
| LENGTHS | 9”4”, 11’4” |
| DECK | 11-Gauge Smooth Steel Plate |
| HEADACHE RACK | One Piece Steel Tube |
| HEADACHE RACK LIGHTING | Smoke LED Oval |
| DECK | 11-Gauge Smooth Steel Plate |
| FRAME RAILS | 4” Structural Steel Channel |
| CROSSMEMBERS | 3” Structural Roll-Formed Steel Channel |
| REAR LIGHTING | Smoke LED Oval |
| MARKER LIGHTING | Bullet DOT Approved LED |
| MANWELL PIT | SS & CS Front Man Pit with Gate |
| BP HITCH | Optional ICC Bumper with B&W 24.5K lb. Hitch with 2.5” Receiver Tube |
| FUEL FILL | Angled |
| 12V TRAILER PLUG | Round 7 Pin/4 Way Flat on Rear |
| REAR LIGHTING | Smoke LED Oval |
| LIGHT BOX (REAR SKIRT) | Steel |
| TOOLBOX | N/A |
| FENDERS | N/A |

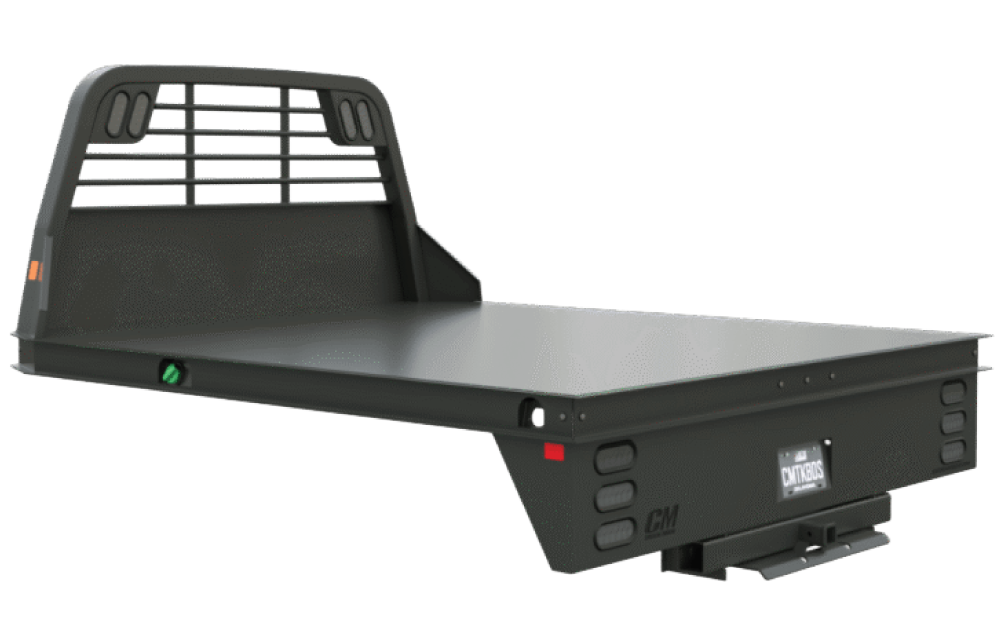

Features a premium EpoxiShield powder coat, one-piece steel tube headache rack, lifetime warranty LED smoke lights, and a rugged 11-gauge steel tread plate deck.
| LENGTHS | 9”4”, 11’4” |
| DECK | 11-Gauge Steel Tread Plate |
| HEADACHE RACK | One Piece Steel Tube |
| HEADACHE RACK LIGHTING | Smoke LED Oval |
| DECK | 11-Gauge Smooth Steel Plate |
| FRAME RAILS | 4” Structural Steel Channel |
| CROSSMEMBERS | 3” Structural Roll-Formed Steel Channel |
| REAR LIGHTING | Smoke LED Oval |
| MARKER LIGHTING | Bullet DOT Approved LED |
| BP HITCH | Optional ICC Bumper with B&W 24.5K lb. Hitch with 2.5” Receiver Tube |
| FUEL FILL | Angled |
| 12V TRAILER PLUG | Round 7 Pin/4 Way Flat on Rear |
| REAR LIGHTING | Smoke LED Oval |
| LIGHT BOX (REAR SKIRT) | Steel |
| TOOLBOX | N/A |
| FENDERS | N/A |

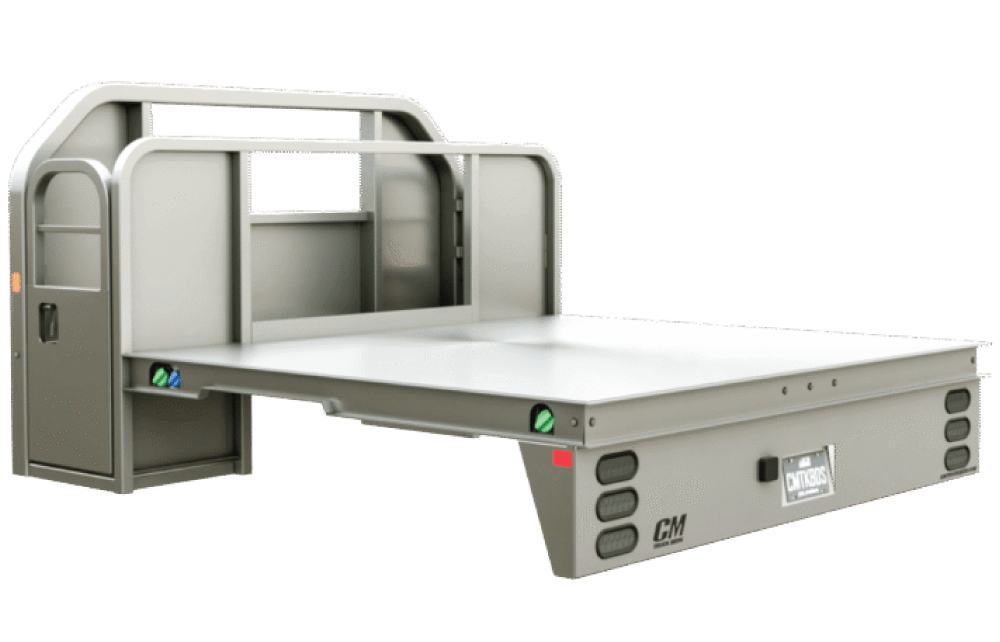

Features a one-piece aluminum tube headache rack, lifetime warranty LED smoke lights, and a rugged 1” extruded aluminum deck. Optional manwell on curbside and streetside enhances accessibility and functionality.
| LENGTHS | 9”4”, 11’4” |
| HEADACHE RACK | One Piece Aluminum Tube |
| HEADACHE RACK LIGHTING | Smoke LED Oval |
| DECK | 1” Extruded Aluminum |
| FRAME RAILS | 4” Structural Aluminum Channel |
| CROSSMEMBERS | 3” Structural Aluminum Channel |
| REAR LIGHTING | Smoke LED Oval |
| MARKER LIGHTING | Bullet DOT Approved LED |
| MANWELL PIT | SS & CS Front Man Pit with Gate |
| BP HITCH | Optional ICC Bumper with B&W 24.5K lb. Hitch with 2.5” Receiver Tube |
| FUEL FILL | Angled |
| 12V TRAILER PLUG | Round 7 Pin/4 Way Flat on Rear |
| REAR LIGHTING | Smoke LED Oval |
| LIGHT BOX (REAR SKIRT) | Aluminum |
| TOOLBOX | N/A |
| FENDERS | N/A |

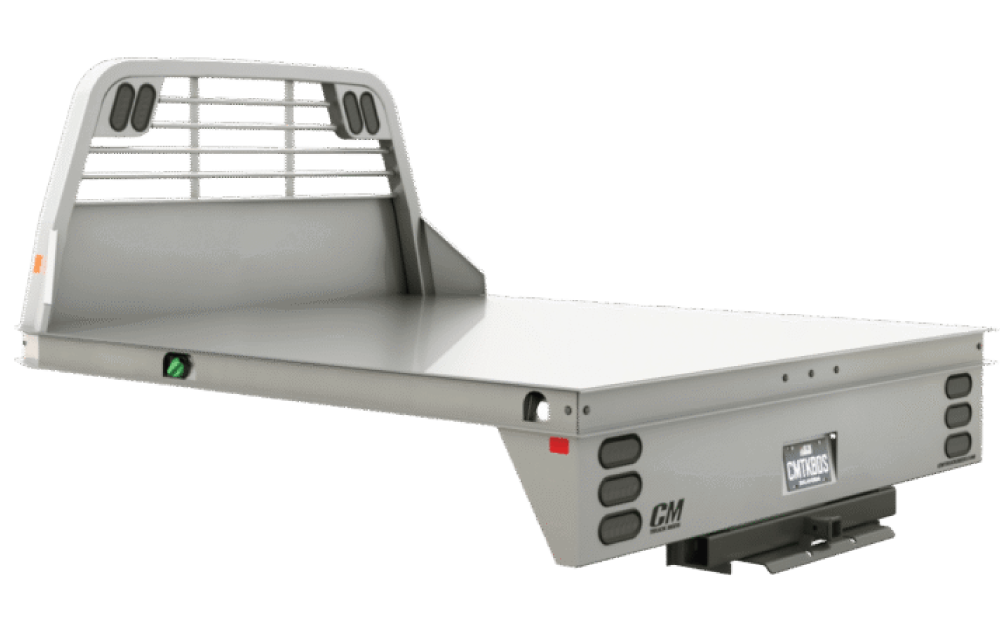

Features a one-piece aluminum tube headache rack, lifetime warranty LED smoke lights, and a rugged 1” extruded aluminum deck.
| LENGTHS | 9”4”, 11’4” |
| HEADACHE RACK | One Piece Aluminum Tube |
| HEADACHE RACK LIGHTING | Smoke LED Oval |
| DECK | 1” Extruded Aluminum |
| FRAME RAILS | 4” Structural Aluminum |
| CROSSMEMBERS | 3” Structural Aluminum Channel |
| REAR LIGHTING | Smoke LED Oval |
| MARKER LIGHTING | Bullet DOT Approved LED |
| BP HITCH | Optional ICC Bumper with B&W 24.5K lb. Hitch with 2.5” Receiver Tube |
| FUEL FILL | Angled |
| 12V TRAILER PLUG | Round 7 Pin/4 Way Flat on Rear |
| REAR LIGHTING | Smoke LED Oval |
| LIGHT BOX (REAR SKIRT) | Aluminum |
| TOOLBOX | N/A |
| FENDERS | N/A |
Truck upfitting is the process of installing equipment and customizing a chassis or van to create a work-ready vehicle tailored to your specific application.
