AXTON TRUCK EQUIPMENT

SPECIALTY BODIES

Specialty bodies are built for the jobs that demand more than a standard truck bed. From hotshot and contractor bodies to landscape, dump, and heavy-duty platforms, these configurations are designed around the way you work. With rugged construction, integrated storage, towing capability, equipment access, and a range of steel and aluminum options, Axton can help you build a truck that is ready for the demands of the jobsite.

VENDORS

REQUEST A QUOTE

Interested in more information on Crane Bodies? Complete the Request a Quote form and an Axton representative will be in touch shortly.

PRODUCTS

Vendor
CM_HS_1800x790_BTT21

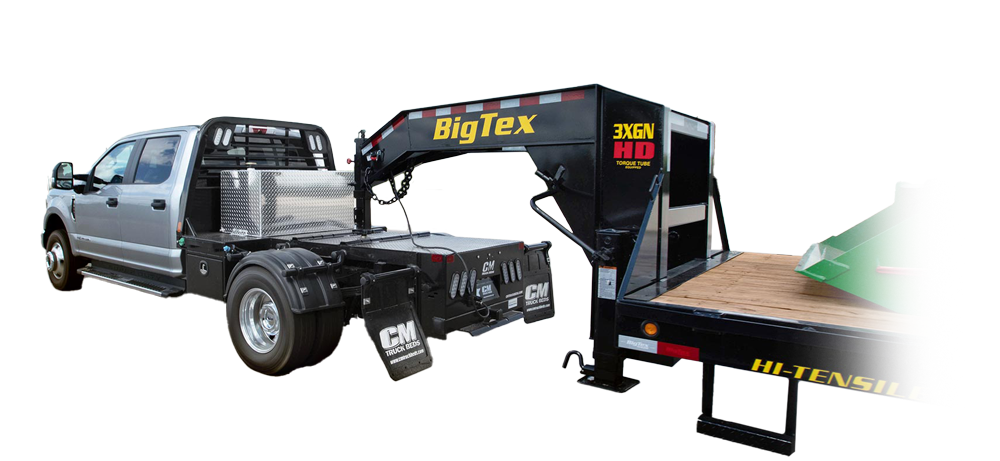

CM Hotshot Body

With industry-best hauling capacity and loads of integrated standard features, the CM Hotshot will take your hotshotting to the next level. Our unique Fuel Deck provides ample room for your external fuel tank, while rock-solid construction and smart components deliver the ultimate in safety, storage and durability.

Steel treadplate deck1/8"
Structural steel channel frame rails4"
Gooseneck/5th wheel hitch system30,000 lb-rated
B&W receiver hitch24,000 lb-rated
Steel tube headache rackIntegrated
Deep fuel deck for auxiliary fuel tank18"
Lockable toolboxesTwo integrated
Brake & backup lightingRecessed LED tail
Channel crossmembers3"
Side rails with stake pockets3/8" x 2"
Durable powder-coat finishIncluded
Available Lengths8'6", 9'4" & 11'4"
Show
CM_TruckBeds_DB_SteelFlatBed-1

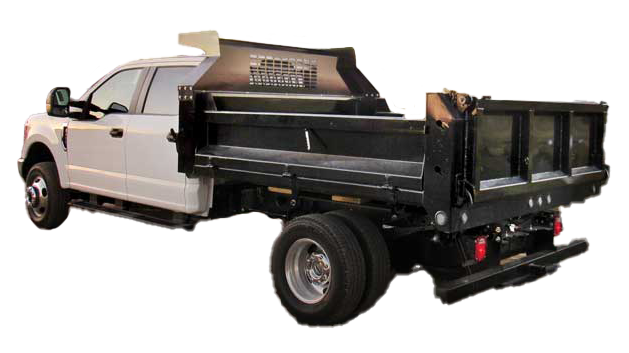

CM Steel Dump Body

With its sleek design, ultra-durable hardware and unsurpassed features, including a heavy-duty two-way rear gate, this rugged dump hauling body is the smart choice for professionals in construction, excavation, landscaping and beyond.

Lengths9', 11'; Custom Available
Headache RackFormed Steel with Cab Protector
Deck10-Gauge
Frame Rails6" Channel Steel
Crossmembers3" Structural Crossmembers
BP HitchOptional ICC Rear Bumper
Fuel FillChassis DEM
12V Trailer PlugCompleted at Upfit
Rear LightingChassis DEM
Tiedowns(4) Welded with D-Rings
Show
axton-truck-2

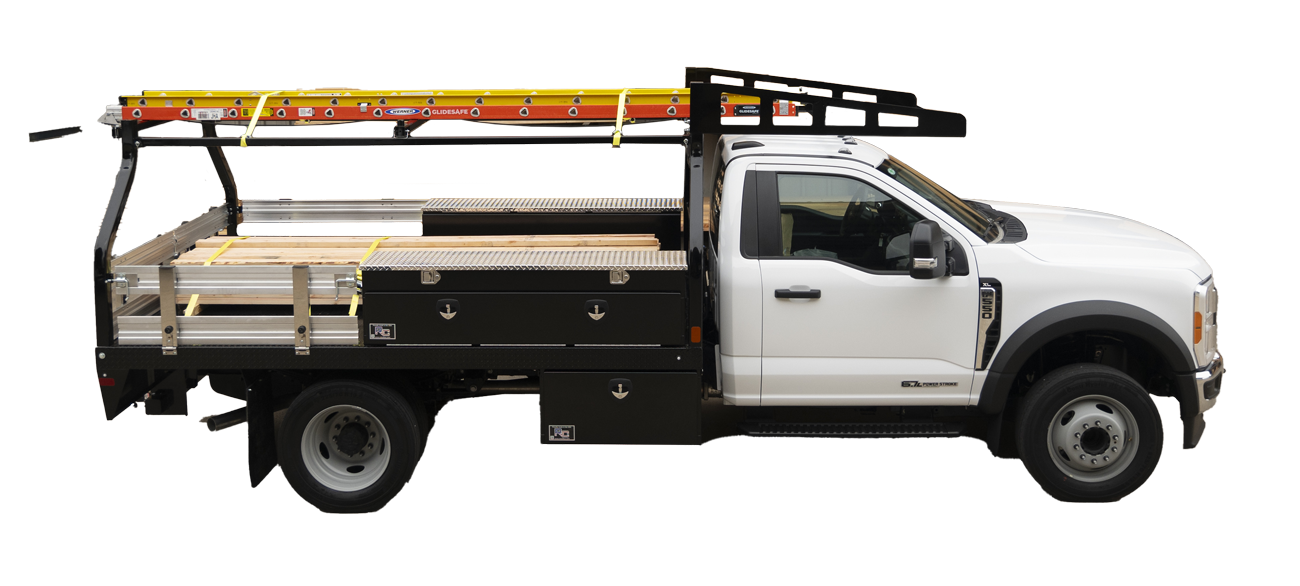

CM Contractor Body

Hard work and efficiency go hand in hand when you use our contractor body to transport your hard work to the job site. This body features a best-in-class 3,000 lb. material rack and 18″ fold down aluminum stake side rails for maximized cargo and access.

Lengths9'4", 11'4"
Headache RackSteel Tube
Deck1/8" Treadplate
Frame Rails4" Structural Channel Steel
Crossmembers3" Structural 3/16" Channel Crossmembers
Rear SkirtSolid One Piece with Rear Step
BP Hitch24K lb. 2 1/2" B&W Hitch with Receiver Tube
Side RailsAluminum Fold Down Side Rails
Fuel FillAngled
12V Trailer PlugRound 7 Pin/4 Way Flat on Rear
Rear LightingClear LED Oval
Light Box (Rear Skirt)Steel
Marker LightingBullet DOT Approved LED
Toolbox(4) Standard Toolboxes
Toolbox HandleBlack T Handle Compression
Show
i-GmgQvmH-X5f (1)

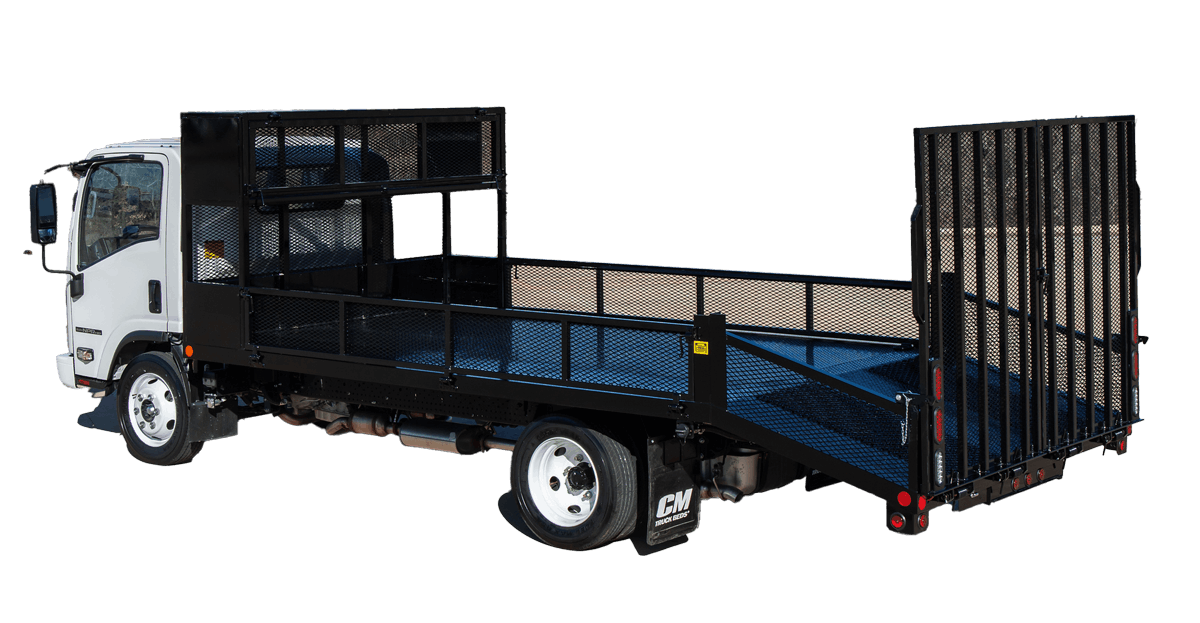

CM Landscape Body

The LB is designed to keep you and your crew organized and productive, no matter how many job sites you visit in a day. Smart features make quick work of loading and unloading, while rock-solid construction delivers lasting strength and durability.

Lengths10’+4’DT, 12’+4’DT, 14’+4’DT
Deck1/8" Treadplate
Frame Rails4" Structural Channel Steel
Crossmembers3" x 3/16" Channel
Rear SkirtDovetail w/Two 72" Rear Ramps
Rear LightingRed/White LED Oval
Light Box (Rear Skirt)Steel
Marker Lighting2" colored LED
Toolbox2' x 2' x 8' Storage Cage with Locking Latch
Tiedowns(4) Welded with D-Rings
Show
specialty-body-axton-1 (1)

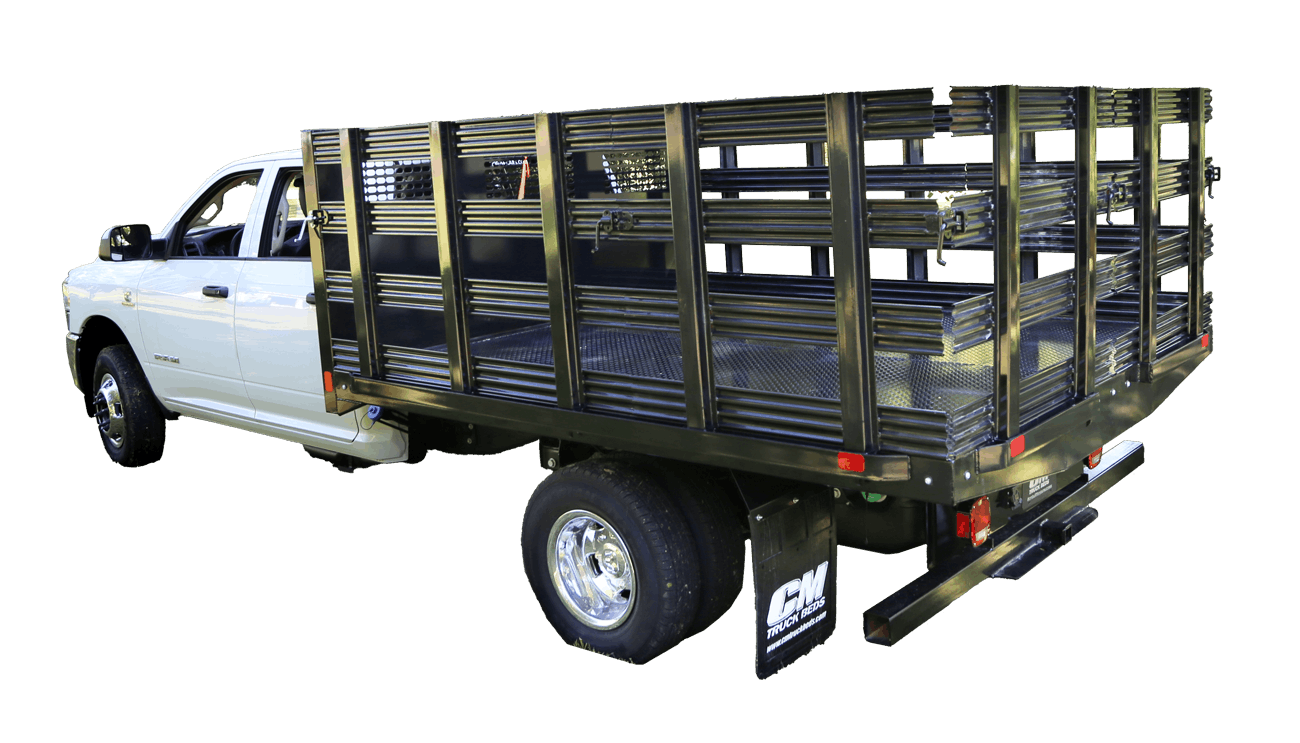

CM Steel Platform Body

The PL and PLS models are platform bodies with an edge, featuring the strongest, most durable materials on the market with best-in-class features to get the job done.

Lengths12', 14', 16', 18'
Headache RackFormed Bulkhead with Punched Grill
Deck1/8" Treadplate
Frame Rails4" Structural Channel Steel
Crossmembers3" Channel Steel 18" OC
BP HitchICC optional
Marker LightingBullet DOT Approved LED
ToolboxOptional Underbody
Show
mc-truck-23456 (1)

CM Heavy Duty Platform Body

Our heavy-duty PL-HD platform body is made with the most strongest, most durable materials on the market. Getting the job done is made even easier by our best-in-class features.

Lengths12', 14', 16', 18', 20', 22', 24'
Headache RackFormed Bulkhead with Punched Grill
Deck3/16" Treadplate
Frame Rails8" Channel Steel
Crossmembers4" Channel Steel 12" O.C.
Rear SkirtN/A
GN HitchN/A
BP HitchICC optional
Marker LightingBullet DOT Approved LED
ToolboxOptional Underbody
Show
axton-truck-45

CM Aluminum Platform Body

Take uncertainty out of the equation with CM’s AL PL model: Strong and durable yet lightweight and efficient, this aluminum platform body is reliable through-and-through.

Lengths12', 14', 16', 18'
Headache RackPunched Aluminum Headache Rack
DeckExtruded Aluminum Floor
Frame Rails4" Aluminum Channel
Crossmembers3" Aluminum Channel Crossmembers
Rear SkirtOne Piece Aluminum
GN HitchN/A
BP HitchICC optional
Side Rails3/8" X 2" Aluminum Extrusion with Stake Pockets
Fuel FillN/A
12V Trailer PlugN/A
Marker LightingBullet DOT Approved LED
ToolboxOptional Underbody
Show

FAQ’S

What is truck upfitting?

Truck upfitting is the process of installing equipment and customizing a chassis or van to create a work-ready vehicle tailored to your specific application.

We work with leading manufacturers in the industry to ensure reliability, performance, and long-term value.
Yes! We have a wide network of dealerships that we partner with, but we also work directly with end users and fleets.
Absolutely. Our team works with you to spec the right truck and equipment based on your application, budget, and timeline.
